Ulvenkrysset Oslo

An existing footbridge crossing the E6 in Oslo, had to be replaced with the re-use of existing supports and with the same lay-out as the existing bridge. Janson Bridging has designed, produced and transported this footbridge type JPB-ped.

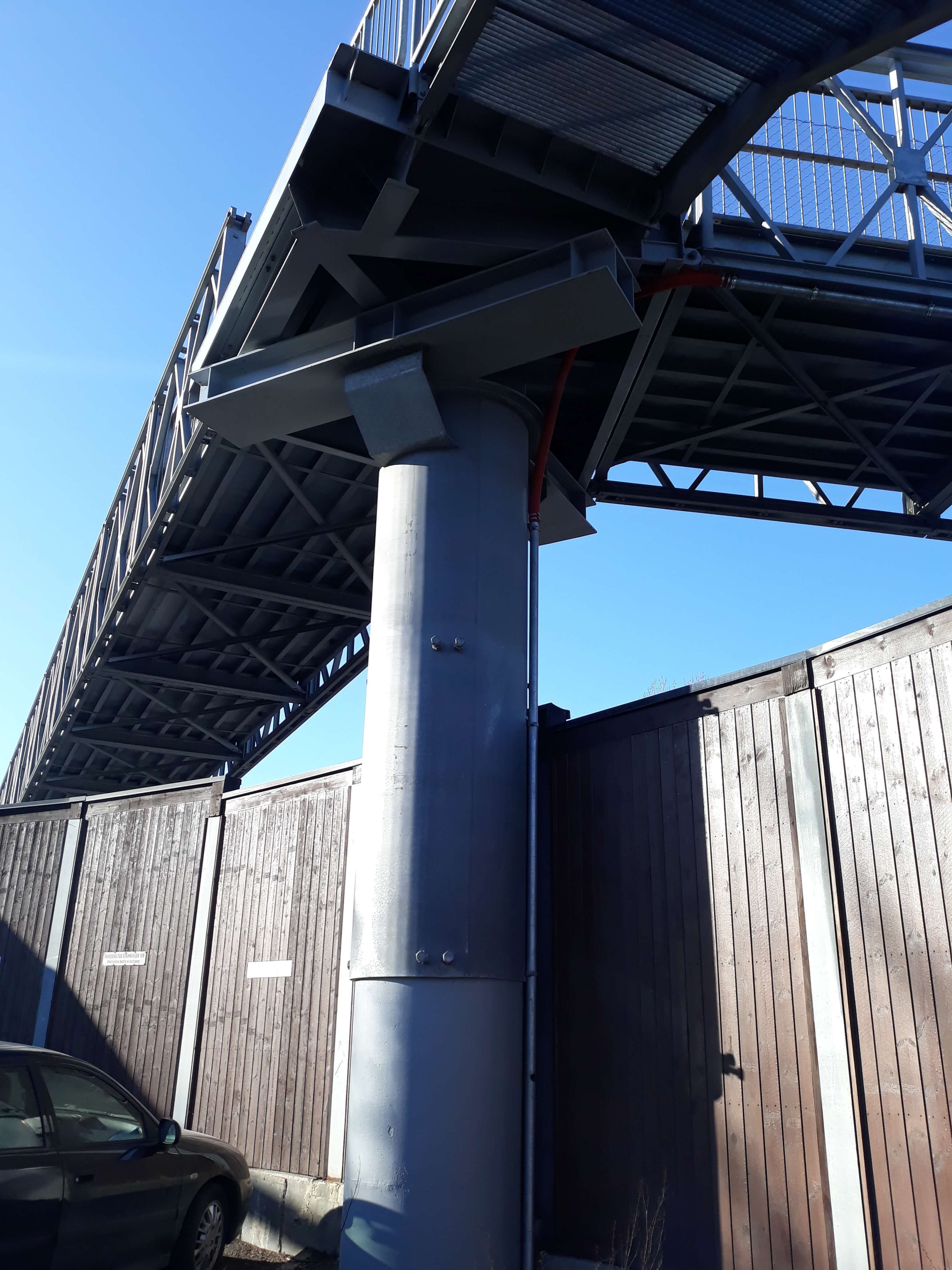

The design of the bridge had to be made with the omission of one intermediate support and with a special adaptor for an existing concrete column

Bridge consist of 51 bays of 3 meter wide, 5 platforms, two stairs and two special intermediate supports.

Teilen auf:

Einzelheiten zum Projekt

Lösungen
Fußgängerbrücke
Typ
JPB-P
Breite der Straße
2,5 m
Deckslast
5 kN/m²
Eigengewicht
142 ton
Länge der Brücke
170 m
Lieferung
20-08-2018
